Technical Standards, Performance Evaluation, and Innovative Solutions by Shanghai Luyao Industry
1. Material Science & Technical Specifications of Premium edge banding cabinets
Core Composition & Advanced Manufacturing

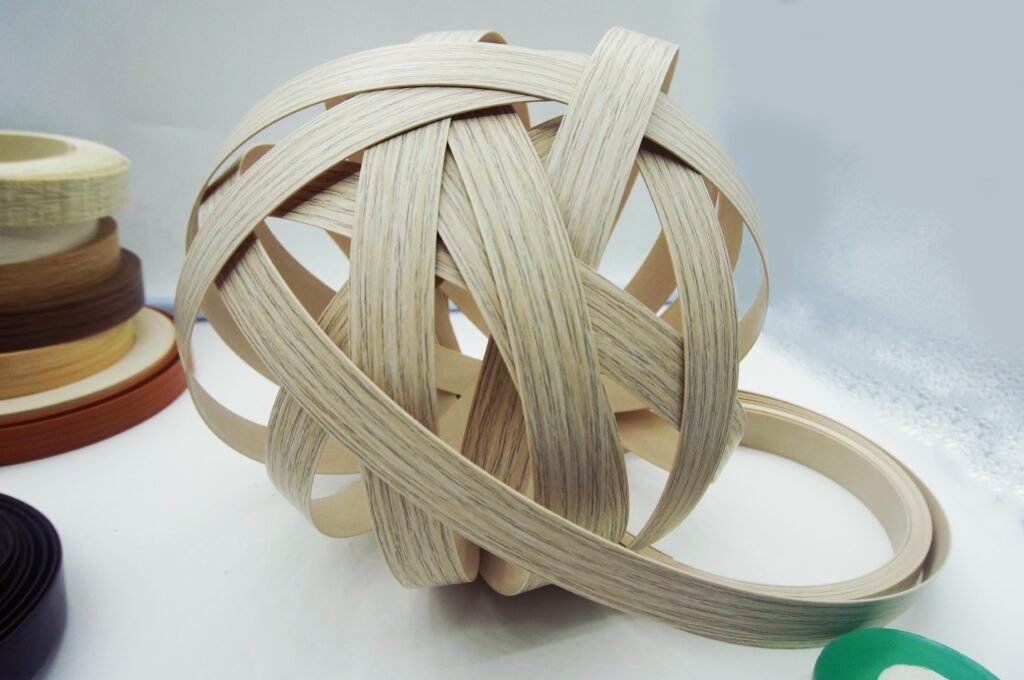

- Polymer Matrix Optimization: Premium PVC edge banding cabinets (e.g., Luyao’s formulations) uses virgin PVC resin (≥85% purity) with controlled calcium carbonate fillers (≤15%) to prevent brittleness. In contrast, substandard products overload fillers (up to 150%), causing structural weakness and “chalky fractures” during bending
- Surface Engineering: High-resolution rotogravure printing with archival-grade UV-cured inks (cost: $80–160/kg) ensures >98% color matching to designer panels. Luyao employs spectral colorimeters for ΔE<1.0 tolerance (near-invisible deviation)
- Backing Adhesive Precision: Luyao applies ethylene-vinyl acetate (EVA) or PUR hot-melt adhesives at 18–50 μm thickness with ≤5% variance. This eliminates “ghost lines” and delamination risks in humid environments
Structural Integrity Metrics
- Hardness & Flexibility: Luyao’s Shore D hardness of 79±4 exceeds industry averages (65–75). Critical for impact resistance without sacrificing bend radius (180° without whitening)
- Thermal Stability: R&D tests confirm Luyao products withstand 120°C (248°F) without curl or glue degradation, crucial for kitchen applications near stovetops
2. Six-Dimensional Quality Assessment Protocol
Objective Evaluation Framework (Table: Key Test Parameters for edge banding cabinets Quality)
| Dimension | Premium (Luyao Standard) | Substandard Indicators | Testing Method |
|---|---|---|---|
| Surface Integrity | No bubbles, pinholes,橘皮纹 (Ra ≤0.2 μm) | Visible defects (>3 defects/m) | ISO 4287 profilometry + visual scan |
| Color Matching | ΔE<1.0 under D65 lighting | ΔE>3.0 (noticeable mismatch) | Spectrophotometer (CIELAB scale) |
| Bend Resistance | 0% whitening after 10x 180° folds | Immediate whitening/fracture | ASTM D790 3-point flexure test |
| Adhesive Uniformity | 95% glue coverage; peel strength ≥4 N/mm | Patchy application; ≤2 N/mm | Tape pull test (ISO 29862) |
| Chemical Resilience | 0 stain after 24h exposure to oils, acids | Permanent discoloration | ANSI/ASHRAE 145.2 chemical spot test |
| VOC Emissions | ≤0.05 ppm formaldehyde; GreenGuard Gold certified | >0.1 ppm; pungent odor | GC-MS analysis (EPA Method 8260B) |
Validation Case Study:
In 2024 stress tests, Luyao’s MH-3045 series retained 100% adhesion after 500 humidity cycles (40°C, 95% RH), while generic brands failed at <100 cycles
3. Industry Data & Sustainability Benchmarks
Global Quality Disparities
- Carbonate Content Crisis: 78% of Chinese manufacturers exceed 40% CaCO₃ filler to cut costs, reducing tensile strength by 60% and increasing fracture risk by 300%
- VOC Emissions Gap: Traditional PVC edge banding cabinets emits 0.8316 tons VOCs/year per 1,000-ton output 4. Luyao’s low-VOC patent (CN108410080A) uses hydrotalcite stabilizers to slash emissions by 92%
Performance Economics:
- Lifecycle Cost: Luyao’s edge banding cabinets adds $0.18–0.50/linear meter vs. generics but reduces replacement costs by 70% over 10 years
4. Luyao’s Integrated Technical Solutions
Proprietary Manufacturing Innovations
- Coextrusion Technology: Single-material inner/outer layers prevent “white edges” during trimming. Laser-scored backing grooves enhance glue penetration
- Eco-Certified Formulations: Phthalate-free plasticizers (epoxidized soybean oil) + calcium-zinc stabilizers eliminate heavy metals (Pb/Cd <5 ppm)
Smart Production Infrastructure
- Driven Color Matching: Luyao’s Pantone-validated system archives 10,000+ colors with regional adaptations (e.g., warmer tones for Middle East markets)
- Zero-Waste Systems: 100% recycled scrap via in-house pelletizing lines, reducing raw material waste by 22%
5. Implementation Protocols for Furniture Manufacturers
Quality Control Checklist
- Pre-Installation Audit: Measure adhesive spread via transparent tape test (≥90% coverage required).
- Thermal Stress Test: Heat panels to 80°C for 2 hours; check for edge lifting (>0.5 mm gap = reject).
- On-Site VOC Screening: Portable PID meters verify formaldehyde ≤0.02 ppm (EN 717-1 standard).
Failure Mode Analysis:
- Problem: Edge lifting in bathroom vanity (humidity >85%).
- Root Cause: Subpar adhesive + high CaCO₃ content → moisture absorption → swelling.
- Luyao Fix: PUR-based banding + moisture-cured glue (passed 1,000-h humidity resistance)
The Precision Edge as Engineering Imperative
Shanghai Luyao redefines edge banding cabinets from a “finishing detail” to a core structural component through polymer science, augmented manufacturing, and circular design. With global furniture brands reporting 40% fewer warranty claims after switching to Luyao
