Expert solutions from material selection to construction

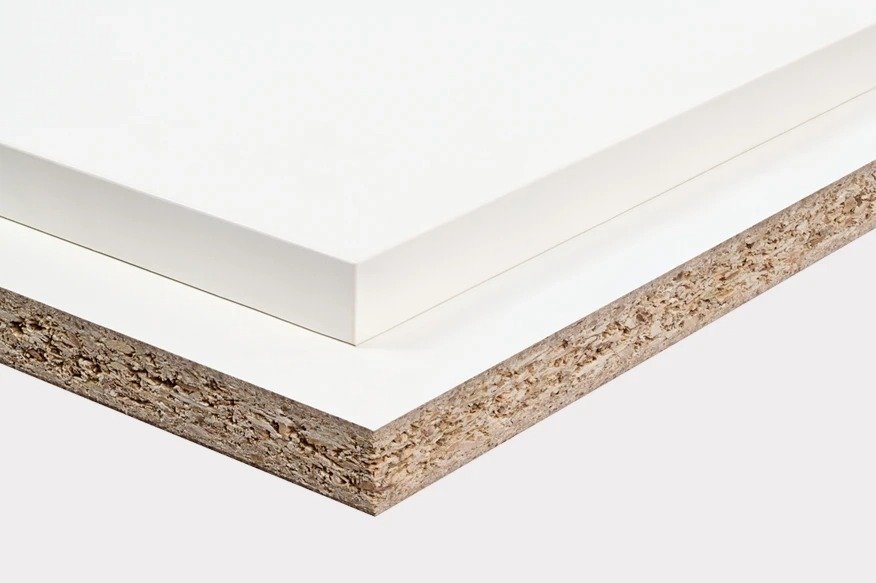

edge banding White manufacturers

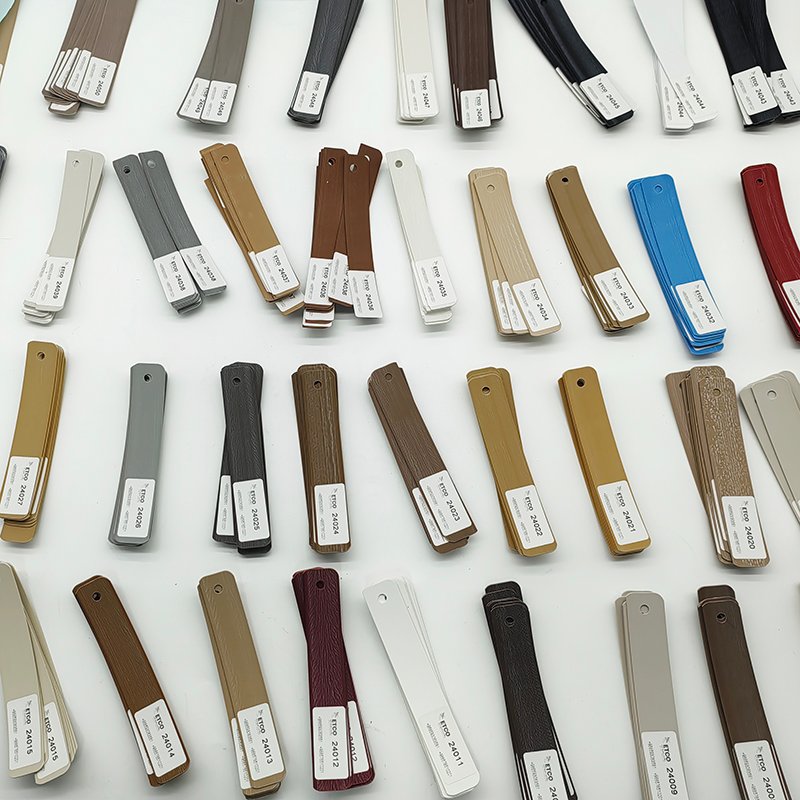

PVC edge banding is mostly preglued and many colors and sizes are available in White, Black, Fog Gray, Folksotne Gray, Almond.
Why do 85% of furniture factories around the world prefer white edge banding?
- Design adaptability: Minimalist white has been ranked in the top 3 furniture color matching for 5 consecutive years
- Defect hiding power: Actual test data shows that 0.5mm thick white PVC edge banding can perfectly cover the burrs of board cutting
- Cost-effectiveness: Compared with wood grain edge banding, the inventory turnover rate of white version is increased by 40%
- Yellowing problem: Our anti-UV formula makes the product only ΔE<1.5 after 3000 hours of light test
- Obvious seams: Patented “seamless hot melt technology” makes the color difference at the seam ≤0.3 level
About Us
Shanghai Luyao Industry Co.Ltd
Shanghai Luyao Industry Co., Ltd. was established in 2002. It is a leading manufacturer focusing on the research and development and production of PVC edge banding, PVC film, hot melt adhesive, kitchen skirting and PVC screw caps. Headquartered in Shanghai, the company has two modern production bases, which focus on the production of edge banding and PVC film respectively. It adopts international advanced equipment and technology to ensure the high precision and durability of the products.
With excellent product quality and service, Luyao Industry’s business covers more than 100 countries around the world and has established long-term cooperative relations with more than 1,000 companies, with an average cooperation period of more than 10 years. The company has a rich product line, including PVC edge banding with customizable texture and width (0.4-3.0mm), decorative PVC film, furniture bonding hot melt adhesive and functional kitchen skirting board, which are widely used in furniture manufacturing and interior decoration.
Luyao Industry adheres to the concept of innovation and customer first, has passed international certifications such as Intertek, and actively participates in top global industry exhibitions (such as CIFF, Dubai WoodShow, Interzum) to continue to expand the international market.
Standard
Edge Banding White core parameters decryption
| Product Name： | Edge banding |
| Material: | PVC,ABS,Acrylic,Melamine environmentally friendly materials according to your requirement |
| Surface: | Wood Grain, Solid Color, Fabric Grain,Marble Grain, etc |
| Finish: | High Glossy, Matt, Super Matt, Textured, Skin,etc |
| Color: | Any color is available |
| Width: | 9~120mm, Customized |
| Thickness: | 0.4~5mm, Customized |
| Packing: | in cartons or according to your requirements |
| Supply ability: | 3000,000m per day |
| Sample: | free swatch for test after pay for the freight |
| Temperature: | High and low temperature resistant |
Device Adaptation Solution
Edge banding white suitable machine
Semi-automatic edge banding machine
It is necessary to manually place the board and align the starting position.
Automatically complete the processes of gluing (or activating pre-gluing), pressing, front and rear end alignment, upper and lower rough trimming, upper and lower fine trimming, scraping, polishing, etc.
The operation is relatively simple and flexible, suitable for small and medium batches, multiple sizes, and multiple colors.
Confirm machine compatibility
Make sure that the semi-automatic edge banding machine has the function of activating pre-gluing (usually a heated pressure wheel or an independent hot air device), and its temperature control range can meet the activation requirements of the selected pre-gluing edge banding.
Parameter matching: Accurately match the machine’s heating temperature, pressure and feed speed with the activation characteristics of the pre-gluing edge banding. Too low temperature or insufficient pressure will result in weak bonding; too high temperature or excessive pressure will cause deformation of the edge banding and overflow of the glue layer.

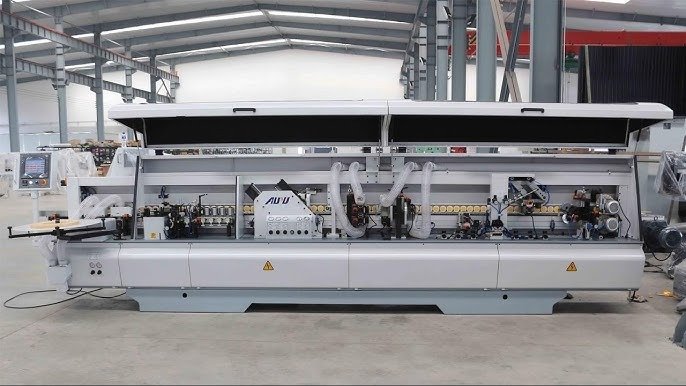

Fully automatic production line
Highly automated, usually connected with processes such as cutting and drilling.
Automatic board loading, automatic feeding, automatic gluing (or activation of pre-gluing), automatic edge pasting, automatic trimming, automatic tracking of special-shaped edges, automatic scraping and polishing, and automatic unloading.
Fast production speed, extremely high efficiency, and extremely high requirements for continuity and stability.
Suitable for large-scale, highly standardized production.
In-depth technical communication
We must fully understand the specific model and technical parameters of the customer’s fully automatic production line (such as: minimum/maximum edge banding thickness and width, feed speed, pressure wheel temperature and pressure range, feed system type, roll change system requirements, trimming knife type, etc.).
Before large-scale supply, we will provide samples to facilitate your rigorous online testing to verify the dimensional stability of the edge banding strip, the smoothness of feeding, the bonding strength, the trimming effect, the surface quality, the compatibility with each unit of the equipment, and the unwinding performance of the entire roll.
Customizable specifications
Width: Accurately match the production line requirements to avoid waste or frequent adjustments.
Length (meters per roll): Customized according to production rhythm and roll change frequency, optimize the roll change cycle and maximize equipment utilization.
Inner diameter: The chuck size that meets the automatic roll change system can be customized.
Coil direction: Clearly mark the winding direction (such as “Top Out”) to ensure that the automatic equipment correctly identifies and feeds the material.
Special requirements: Special colors, textures, thicknesses, and functionalities (antibacterial, weather-resistant, etc.) can all be customized.
Customization requirements? Consult now!
Hot melt glue
Recommended Hot Melt Adhesive
EVA hot melt glue
EVA hot melt adhesives typically require an application or melt temperature of 350 degrees Fahrenheit and have viscosities ranging from 900-3,000 cPs.
PUR hot melt glue
Polyurethane PUR hot melt adhesives have stronger bond strength and better holding power in harsh conditions such as high and low temperatures and bonding exposed to moisture.
