Engineered by China-Based Manufacturer
Hot Melt Glue for Edge Banding

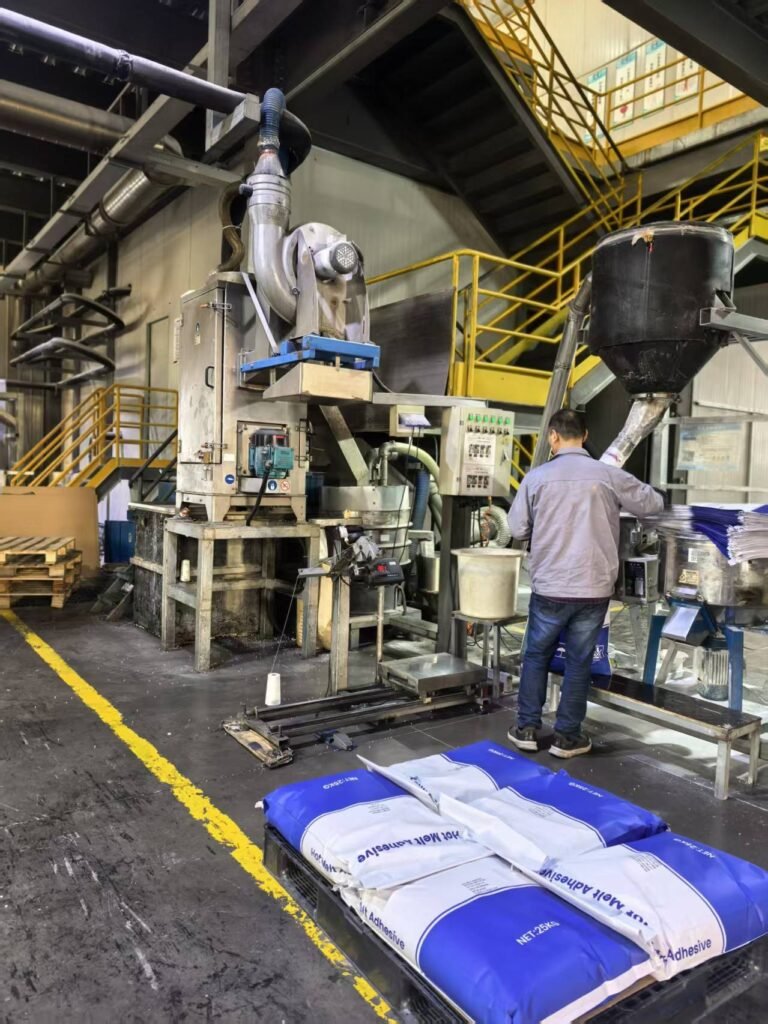

Shanghai Luyao Industrial Co., Ltd. is a hot melt adhesive manufacturer specializing in edge banding strips. We manufacture EVA and PUR Hot Melt Glue for Edge Banding in our own factory in Shanghai and our products are sold to furniture manufacturers, panel processors and edge banding OEMs in Peru, Chile, Argentina, Ecuador, Mexico, UAE, Saudi Arabia, South Africa, Nigeria and the UK.

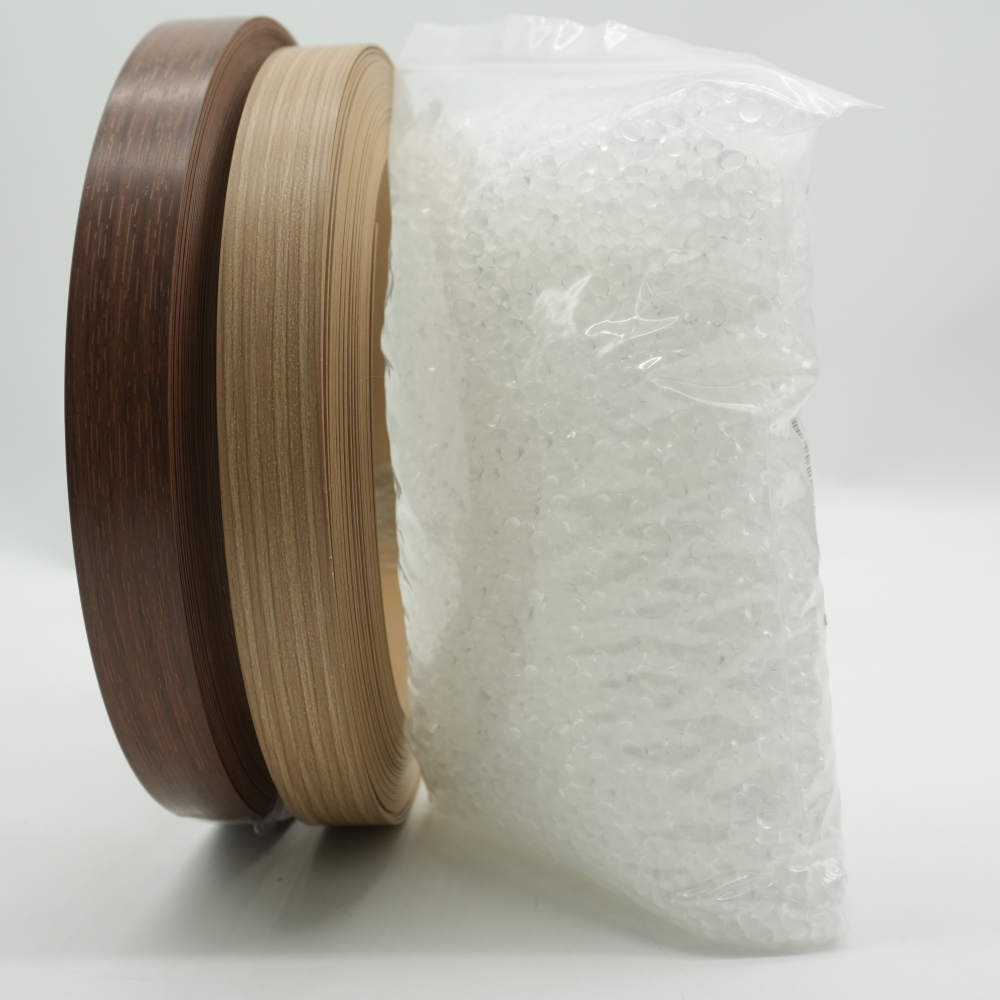

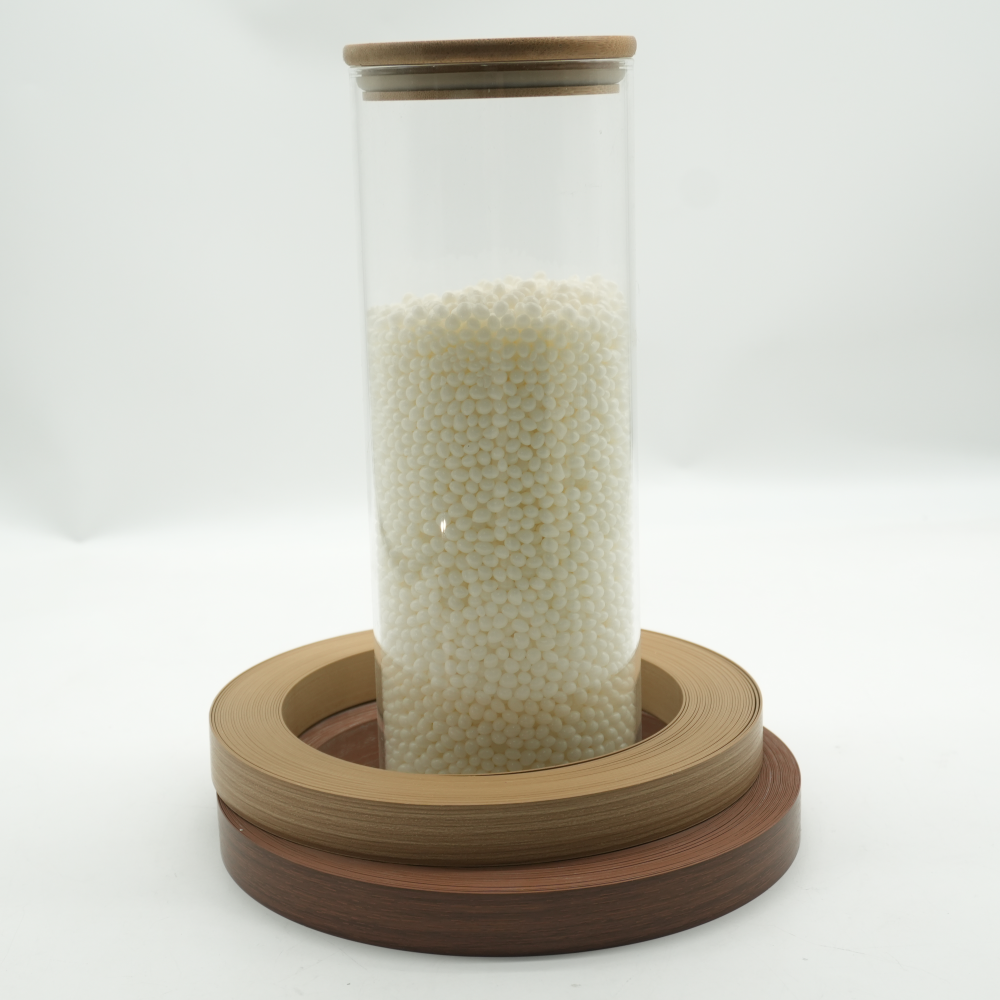

Shanghai Luyao Industry co.ltd don’t resell. All of our Hot Melt Glue for Edge Banding, every strip of glue, and every tube of glue we send is developed and manufactured in-house and it’s paired with our PVC, ABS, acrylic and melamine edge banding strips – providing your customers a one-stop shop assurance, making sure that edge banding strips and adhesives are a perfect match.
What Is Hot Melt Glue for Edge Banding
The hot melt adhesive for edge banding is a technical thermoplastic or thermoset adhesive which attaches an edge banding strip of PVC, ABS, acrylic, melamine, or finish to the rough edges of particleboard, MDF, or plywood.
Hot Melt Glue for Edge Banding is kept inside the edge banding machine in a heated tank, or pre-melting tank. A thin film (usually 120–250 g/m²) is placed by rollers or channel nozzles on the edge of the board or on the back of the edge banding strip. Then pressure rollers downstream press the edge banding strip tightly onto the board during the open time of the glue. For EVA, open time is usually 3-6 seconds, and for PUR, open time is generally 30-60 seconds.
Three things are above all important to be achieved in a short period of building:
- Wetting properties – the rate at which a molten adhesive flows into the porous edges of the substrate
- Open time is the time that the adhesive is accessible for bonding before the surface material forms a skin.
- Cure rate – the rate at which the bond strength attains a workable strength following pressing.
A good adhesive in that respect makes for quite clean and crisp bond lines and high scrap rates are not observed.
Why Adhesive Choice Determines Edge Banding Quality
The adhesive — not the tape — is the most common root cause of edge banding defects in furniture production. A premium PVC tape on a mismatched glue will still fail; a mid-range tape on the right Hot Melt Glue for Edge Banding will outperform expectations.
Problems you may have encountered
Open joints after 6 months in service
usually a glue with too low a softening point for the end-use climate
Visible white line of glue on dark edges
Wrong polymer is selected, or the stability is too low, it cannot be fully wetted.
Glue stringing at application rolle
the viscosity is too high for the line speed or the pot is too hot and degrading
Congealed glue in pot
glue resides too long above its thermal stability ceiling (common on Friday-evening shutdowns)
Edge banding separation at corners
bonding strength on the radius-zone too weak, often speed-mismatch in drying
Types of Hot Melt Adhesives for Edge Banding
EVA is the base material – around 70% of the fabrication of edge banding around the world is EVA.
PUR is a premium option as it reacts with moisture in the air to cure to a thermoset material (it will not remelt), resulting in an nearly invisible line of adhesive.
EVA Hot Melt Glue
- Application Temp: 180–210°C
- Heat Resistance: Up to ~80°C
- Open Time: 3–6 sec
- Typical Use: Standard PVC/melamine furniture, general cabinetry
PUR Hot Melt Glue
- Application Temp: 120–140°C
- Heat Resistance: Up to ~150°C
- Open Time: 30–60 sec
- Typical Use: Acrylic high-gloss, kitchens, outdoor, premium DTC furniture
PUR requires equipment change. A normal EVA Hot Melt Glue for Edge Banding pot will ruin the PUR in a matter of hours — moisture in the ambient air gets inside the pot and cure the glue in a solid block. PUR must be processed on a closed pre-melter (Henkel Nordson DuraPUR, Robatech RobaPUR, etc.) with nitrogen blanketing or with a tank-on-demand system.
EVA vs PUR Hot Melt Glue
| Criterion | EVA | PUR | Winner |
|---|---|---|---|
| Material cost per kg | $2–4 USD | $6–10 USD | EVA |
| Application temp | 180–210°C | 120–140°C | PUR (lower energy) |
| Energy cost / shift | Higher | ~30–40% lower | PUR |
| Glue line visibility | Visible white/colored line | Nearly invisible | PUR |
| Heat resistance (post-cure) | ~80°C | ~150°C | PUR |
| Water resistance | D2–D3 | D4 | PUR |
| Open time | 3–6 sec (forgiving on speed) | 30–60 sec (great for long boards) | Depends |
| Re-meltable / re-workable | Yes | No (thermoset after cure) | EVA (for rework) |
| Pot maintenance | Easy, daily | Strict — must purge, moisture-sealed | EVA |
| Shelf life | 12–18 months | 6–9 months sealed | EVA |
| Best for | Standard PVC/melamine cabinetry | Acrylic high-gloss, kitchens, premium | — |
The following are also types of edge banding we manufacture.
Selecting the Right Matching Edge Banding
Melamine Edge Banding
Ideal for home furniture, bedroom suites & melamine boards
PVC Edge Banding
Cost-efficient, durable & moisture-proof, available in rich colors.
ABS Edge Banding
Perfect for high-end furniture, kitchens, offices & eco buildings
3D Acrylic Edge Banding
Great for luxury kitchens, display cabinets & commercial interiors
Compatibility with Edge Banding Machines
Hot melt glue performance is greatly dependent on the construction of the edge bander; glue pot size, pre-melter size, roll configuration, pressure rollers, etc. determines the compatible Hot Melt Glue for Edge Banding type.

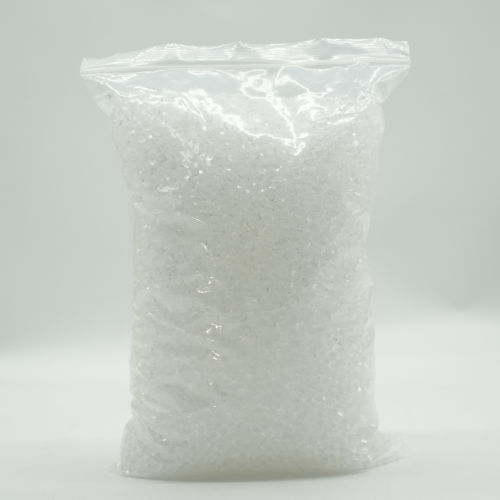

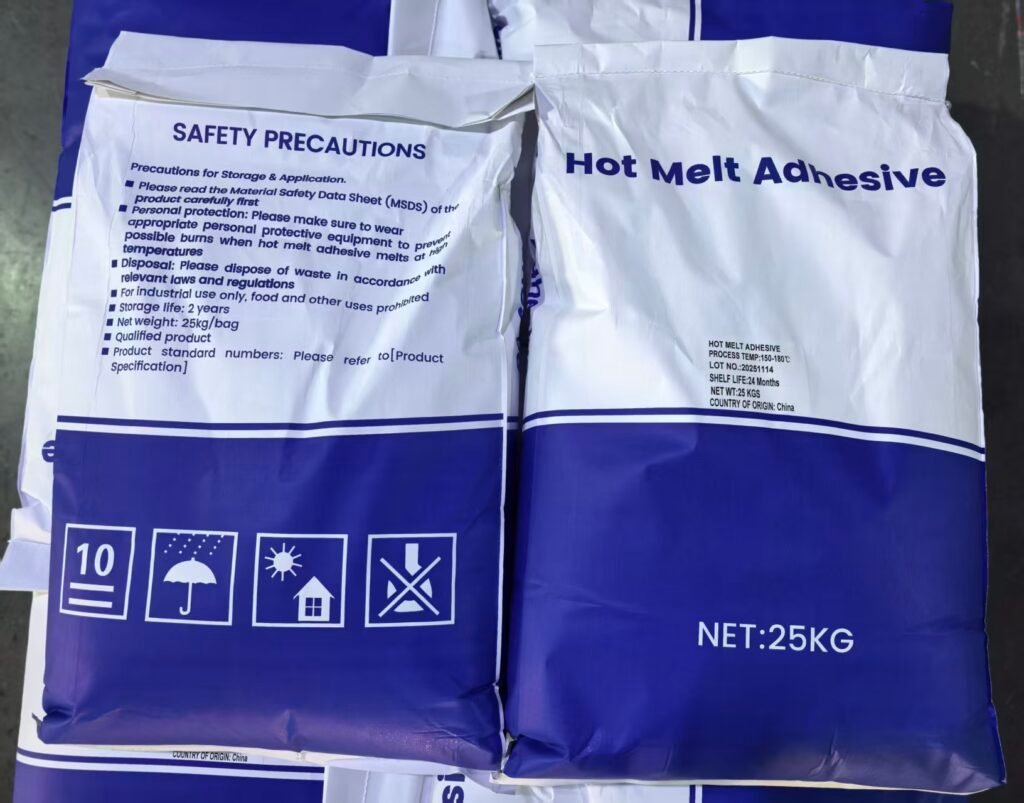

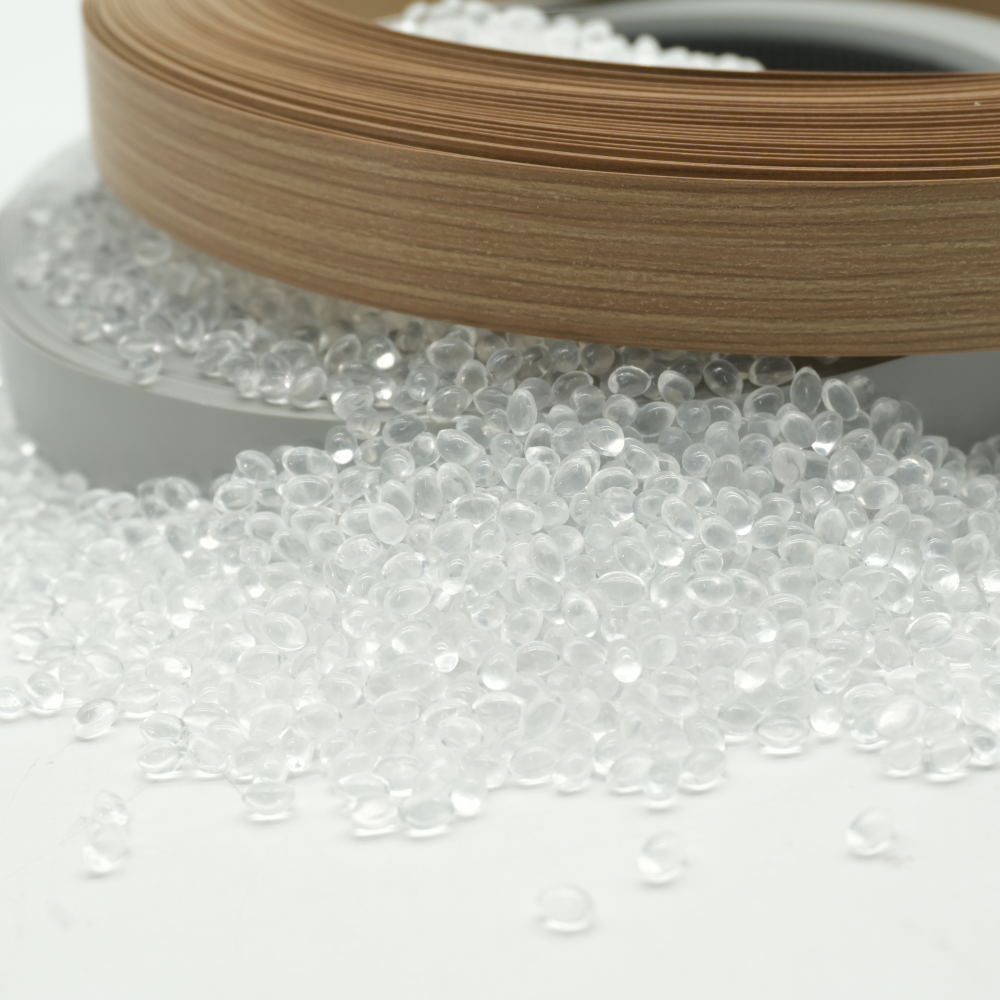

Our EVA hot melt adhesive granules are bagged in 25 kg moisture-proof bags and are suitable for use with automatic feeders. They can be used with roller glue systems on Brandt, Nanxing, KDT and Cehisa machines; LY-105 is also suitable for slot/roller on Homag KAL series, Biesse Akron/Stream, SCM Olimpic/Stefani and IMA Combima. Homag slotnozzle machines need the glue viscosity 40,000-55,000 mPa. s.
What Our Customers Say
Great EVA hot melt glue!
Seiber Cesa
Both EVA and PUR glues perform well in our furniture workshop.
khaled Aelrazak
Melts smoothly with no stringing,we’ve reordered many times.
altaf ahmed
Clean edge banding effect, affordable and stable quality,
Mazen Ahmed
One-Stop Supplier
Edge banding tape + matching glue from one factory
ISO 9001 Certified
MSDS and ISO quality system audited annually
40+ Countries
Exported to USA, EU, Southeast Asia, Middle East, South America
OEM & ODM
Hot melt adhesive manufacturing experience
About Shanghai Luyao Industry Co.Ltd
Shanghai Luyao Industry Co., Ltd. is a professional edge banding and hot melt adhesive manufacturer located in Shanghai,China.
We are among the few producers in the world who are able to manufacture both the edge banding (in pvc, abs, acrylic, melamine and wood veneer) and theHot Melt Glue for Edge Banding (eva and pur) in house. This in-house production model means that our adhesive systems are not designed or tested simply on a theoretical basis for use with our edge banding products but really taken own end products.
Free Sample. Real Test.
500g of EVA or PUR Hot Melt Glue for Edge Banding — matched to your material and machine — shipped within 7 days. Sample is free; you cover the courier ($25–60 via DHL/FedEx).
