High Gloss & 3D Depth Edging from a Real Shanghai Factory
PMMA Edge Banding
If you’ve been searching for an edge banding manufacturer and looking for a suitable price for your first purchase, why not try our samples first? If you like them, then place a formal order. Our acrylic edge banding (PMMA Edge Banding) has a glass-like sheen, which PVC, no matter how thick the paint, cannot replicate.
What exactly is acrylic edge banding?
Acrylic edge banding—sometimes called PMMA edge banding, “3D edge banding,” or “high-gloss acrylic edge banding”—is an extruded edge banding profile made of polymethyl methacrylate (PMMA), a polymer belonging to the same class as optical-grade plastics.
Its importance lies in the fact that PMMA’s refractive index is close to that of glass. When you co-extrude a clear PMMA top layer with a colored or printed bottom layer, light refracts through the material’s surface. This is the “3D effect” you see in showrooms—and the primary reason why kitchen and wardrobe designers choose acrylic over PVC in high-end projects.
Our PMMA Edge Banding uses a two-layer co-extrusion process:
Top layer: Clear PMMA, 0.3-0.5 mm thick (depending on your desired product size)
Bottom layer: Colored, wood grain, stone grain, metallic, or two-tone
The two layers are fused together during the extrusion process—not glued or laminated. This is important because inexpensive PMMA Edge Banding on the market is usually just a thin layer of acrylic film over a colored PVC strip. They may look similar at first. However, in the humid environment of a kitchen and under UV exposure from windows, the edges of the film-coated edge banding will begin to peel off after 18 months. Co-extruded edge banding, on the other hand, will not.
Suitable scenarios
High-end kitchen cabinet doors (especially flat-panel modern designs)
Wardrobe and closet system panels where clients want a “painted look but don’t want to pay for it”
Reception desks, retail display cases, hotel furniture
Any project requiring high-gloss acrylic-laminated medium-density fiberboard (MDF)
Low-cost flat-pack furniture – the price difference between acrylic sheets and PVC is significant (acrylic sheets cost approximately 2-3 times more than equivalent PVC sheets).
Curved or post-molded edges, especially very small-radius curved edges (acrylic sheets are harder than PVC sheets; stress whitening occurs below R8 rating).
Specifications
These are our standard production specs. We can customize, but starting from standard saves lead time:
| Basic Specification Parameters | |
| Parameter Name | Value Range |
| Thickness | 0.8 mm / 1.0 mm / 1.2 mm / 1.5 mm / 2.0 mm |
| Width | 17 mm – 55 mm (Common Specifications: 22, 23, 28, 36, 43 mm) |
| Length per Roll | 150 m / 200 m |
| Process Performance Parameters | |
| Parameter Name | Value Range / Supported Types |
| Surface Finish | Super High Gloss, Matte, Soft-touch, Metallic, 3D Wood Grain |
| Backing | Primer-coated (compatible with EVA/PUR hot-melt adhesive) or Laser pre-coated |
| Color Matching | Color matching available based on Pantone color card, RAL color card, or physical panel sample (one-to-one color matching according to physical panel is supported) |
What colors and finishes can I get?
- Solid colors — we stock over 200 standard colors, which includes all the high gloss whites, blacks, grays and the dark colors (navy, forest green, burgundy) that are trending in kitchen design at the moment.
- Wood grain patterns – oak, walnut, ash, teak, bespoke grains.
- Metallic & Special Finishes – Brushed Aluminum Look, Mirror Finish, Pearl, Glitter!
To OEM customers matching a particular panel supplier (EGGER, Kronospan, Wilsonart, etc.), provide the panel reference code and we will color-match. Custom Pantone matching available with MOQ.
MOQ:5000 / Meter
Made in China
Approximately 2000+ color libraries
Other recommended products
PVC Edge Banding
PVC edge banding is a rugged and resilient plastic that can be applied on visible edges of wood, MDF or particle board.
Melamine Edge Banding
Melamine edge banding can be heated with a regular iron or an edge banding machine to make your shelves or cabinets look clean and professional.
ABS Edge Banding
ABS edging strips bond well with conventional hot melt adhesives like EVA, PA, APAO and PUR.Commonly ranges from 0.4 mm to 3.0 mm.
Wood Veneer Edge Banding
Wood veneer edge banding is used to cover the exposed edges of boards and can also be used to beautify the edges of laminated surfaces, making them look more like solid wood.
EVA Hot Melt Glue
PUR Hot Melt Glue

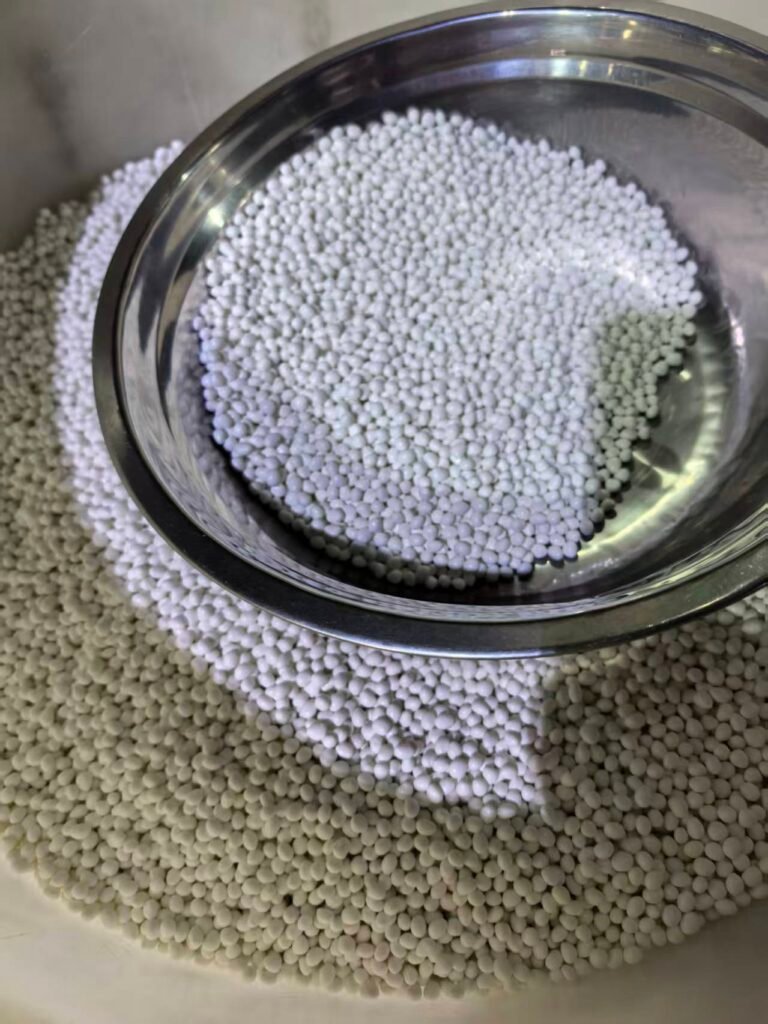

Matching hot melt adhesive
Before placing an order
please see and touch the product in person.
Monitors do not show true impact of high gloss finish PMMA edge banding under the showroom lighting and PDF specifications cannot describe its texture truly. If you intend to purchase a full container, it’s better to see the real product first.
About Shanghai Luyao Industry Co.Ltd
We are a Chinese manufacturer of edge banding products, including PMMA, ABS, PVC, melamine, and matching edge banding adhesives. Our PMMA Edge Banding is manufactured in our factory in Shanghai, China, and exported to furniture manufacturers, cabinet producers, and trading distributors in approximately 30+ countries. Our largest export markets are, in order, Europe, the Middle East, North America, and South America.
Can we replicate a panel manufacturer’s color?
We frequently match colors to EGGER, Kronospan, Wilsonart, Formica, Arauco and most local laminate manufacturers. Just provide us with the panel code or a sample and our color lab matches to within Delta-E 1.5 — so close that the edge and panel appear to be the same color under typical lighting. This is one of the most popular OEM services we offer. Furniture producers who are developing product lines based on certain laminate vendors need their PMMA Edge Banding to vanish into the panel face. Stock colors don’t usually match exactly across brands; custom matching is the way to go for serious furniture production.
Color Matching similarity
98%
Warranty and After-Sales Policy
Please send us the photos and your order number, if it is the production problem, we will refund you the amount of damage in 7 days. For OEM clients, the batch records will be kept for 3 years. If there are color deviations among different batches, we can trace to batch and rectify.
How to get a quote from us
Send your specifications via email/WhatsApp/form – width, thickness, color (or sample photo), quantity, and port of destination. We will provide a quote within one business day.
If you need a match with an existing product, please send a panel sample photo via WhatsApp. We will find the closest available stock and provide a quote. We can also offer customized pricing if you require a perfect match.
We are a manufacturer, not a trading company. The person who will provide you with a quote will be responsible for tracking your production progress and handling your subsequent orders.
