Looking for a reliable hot melt glue for edge banding production? Luyao Edge Banding manufactures EVA-based thermoplastic adhesives engineered specifically for bonding PVC, ABS, melamine, and acrylic edge strips onto MDF, particleboard, and plywood panels. Built on 100% imported EVA raw materials, our glue delivers what furniture factories actually care about: consistent melting point across every batch, low consumption per meter, and zero formaldehyde — making it suitable for exports into Europe, the Middle East, and South America.
What Makes Our Hot Melt Glue for Edge Banding Different
Imported EVA Resin — Not a Marketing Phrase, a Production Standard

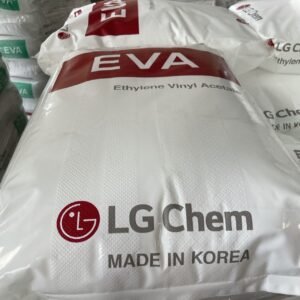

Most Chinese Hot Melt Glue for Edge Banding manufacturers blend domestic EVA with cheaper fillers to hit a lower price point. We don’t. Every kilogram of our hot melt glue starts with imported EVA resin from [ LG Chem, stored in a controlled environment to prevent moisture absorption before extrusion.
Why this matters to your production line: the imported resin has a tighter molecular weight distribution. In plain terms — every batch melts at the same temperature, flows at the same viscosity, and sets at the same speed. Your machine operator dials in the temperature once and stops touching it.
Strong Initial Tack, Lower Glue Consumption
Bond strength and glue consumption are usually a tradeoff — more glue, stronger bond. Our formulation breaks that tradeoff. Independent factory testing with our customers shows:
- Initial tack within 1.5 seconds of pressure roller contact
- Glue line thickness consistently 0.1–0.2 mm — invisible on light-colored melamine edges
- Material consumption reduced 15–20% compared to standard domestic EVA hot melt
Formaldehyde-Free & Export-Ready
Selling into regulated markets means your adhesive can’t become your weakest compliance link. Our hot melt glue is:
- ✅ Zero added formaldehyde
- ✅ REACH compliant (European Union)
- ✅ RoHS compliant
Product Specifications
We produce two EVA hot melt grades — choose based on your edge banding machine’s application temperature range:
| Technical Parameters of Edge Banding Hot Melt Adhesive | ||||
| Parameter | Medium Temperature Adhesive | High Temperature Adhesive | Unit | Test Standard |
| Softening Point | 75 – 85 | 80 – 90 | ℃ | GB/T 15332 |
| Operating Temperature Range | 150 – 180 | 180 – 210 | ℃ | – |
| Viscosity | 50000 – 60000 @150℃ | 65000 – 75000 @200℃ | mPa·s | GB/T 22235 |
| Open Time | 15 – 25 | 10 – 20 | s | – |
| Curing Time | 8 – 15 | 5 – 10 | s | – |
| Density | 0.95 – 1.05 | 0.98 – 1.10 | g/cm³ | GB/T 1033 |
| Solid Content | ≥99 | ≥99 | % | GB/T 2793 |
| Tensile Shear Strength | ≥2.5 | ≥3.5 | MPa | GB/T 7124 |
| Peel Strength | ≥15 | ≥20 | N/25mm | GB/T 2792 |
| Recommended Machine Speed | 10 – 20 | 15 – 30 | m/min | – |
| Coating Weight | 180 – 250 | 180 – 250 | g/m² | – |
| Application Pressure | 2 – 3 | 2 – 3 | kg/cm² | – |
| Substrate Moisture Content Requirement | 8 – 12 | 8 – 12 | % | – |
| Minimum Ambient & Substrate Temperature | ≥15 | ≥15 | ℃ | – |
| Shelf Life | 24 | 24 | months | – |

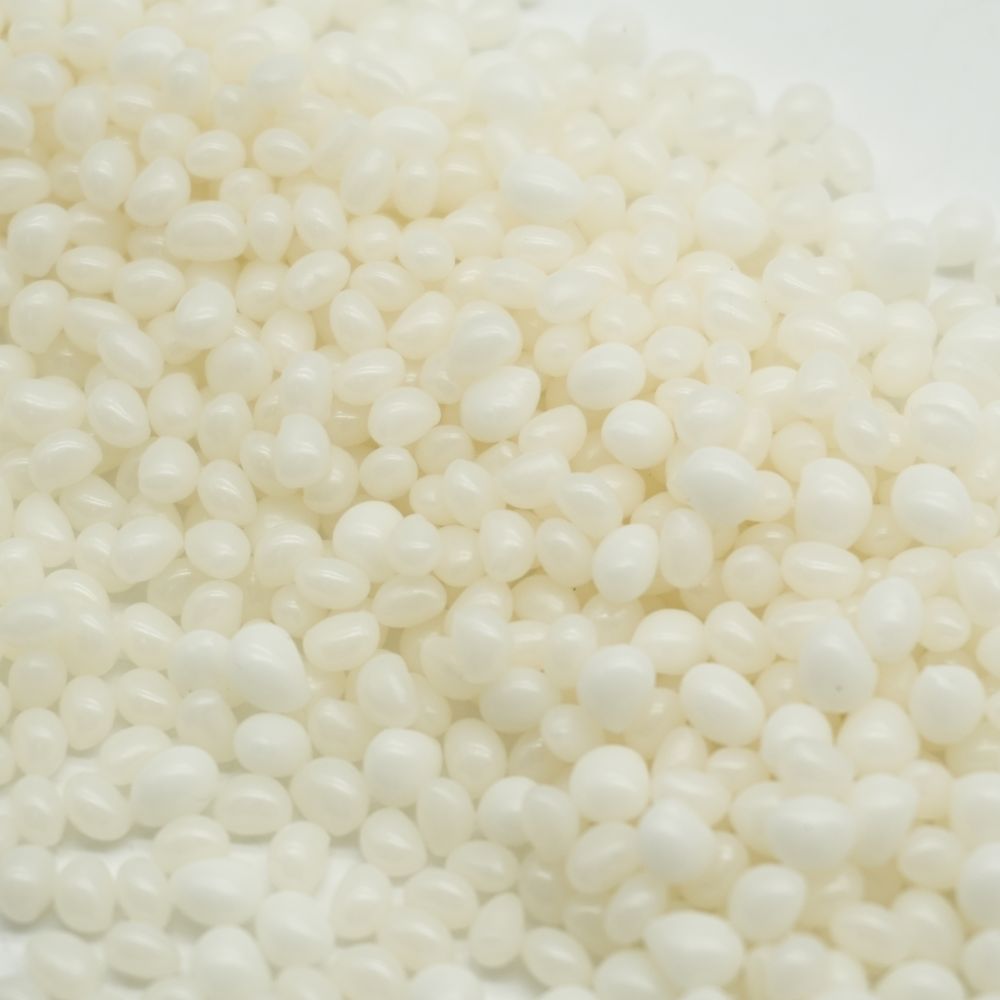

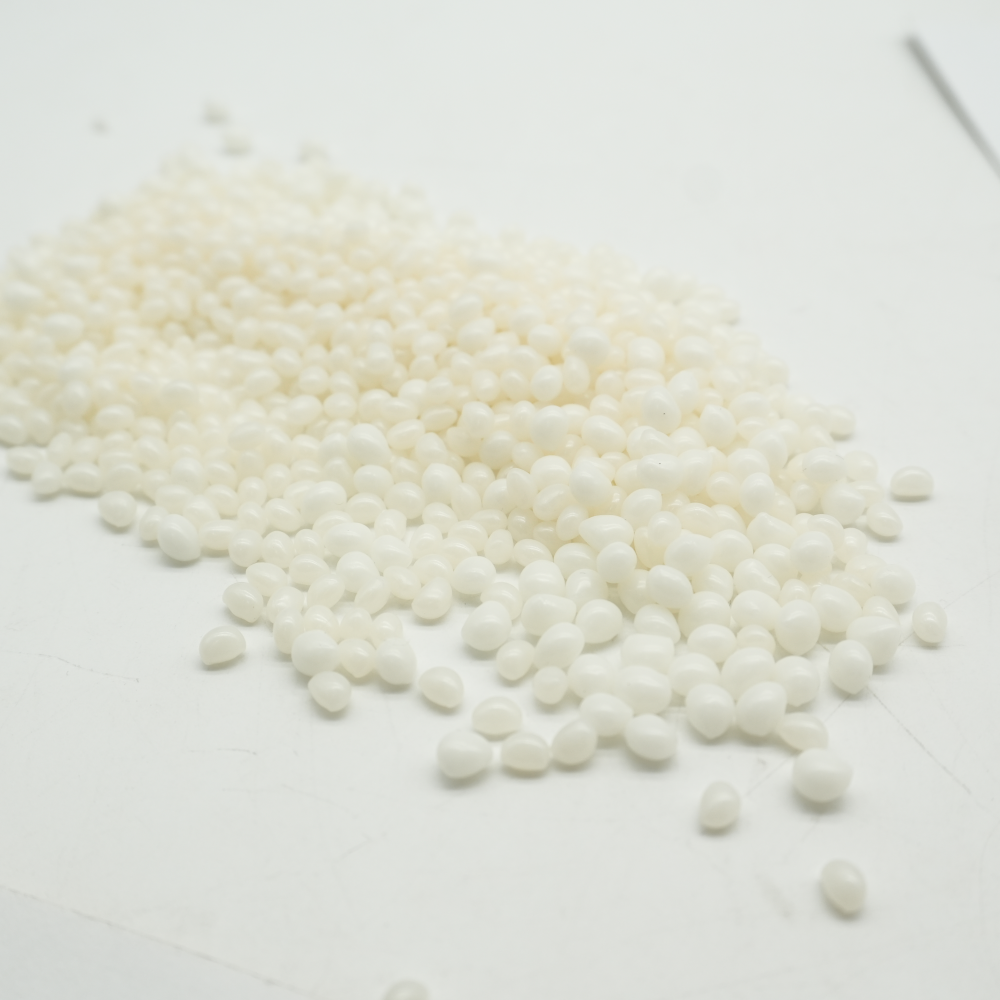

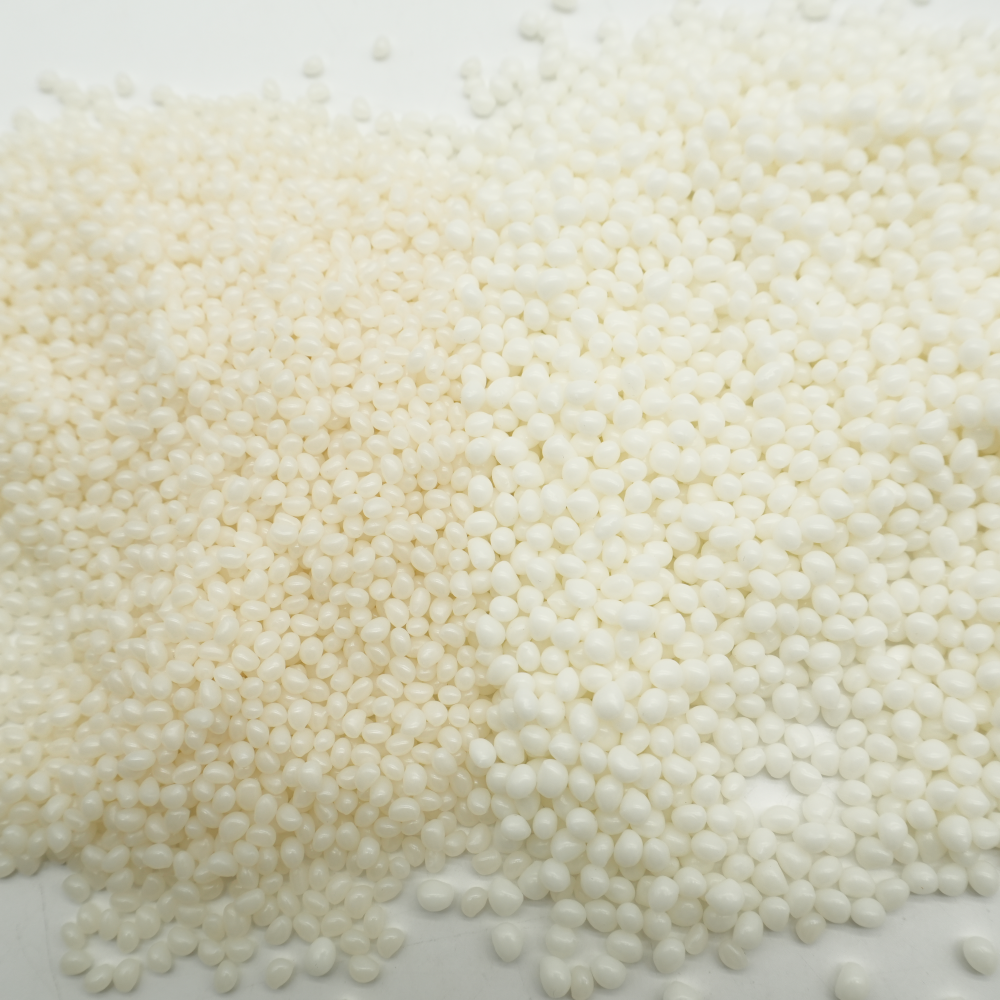

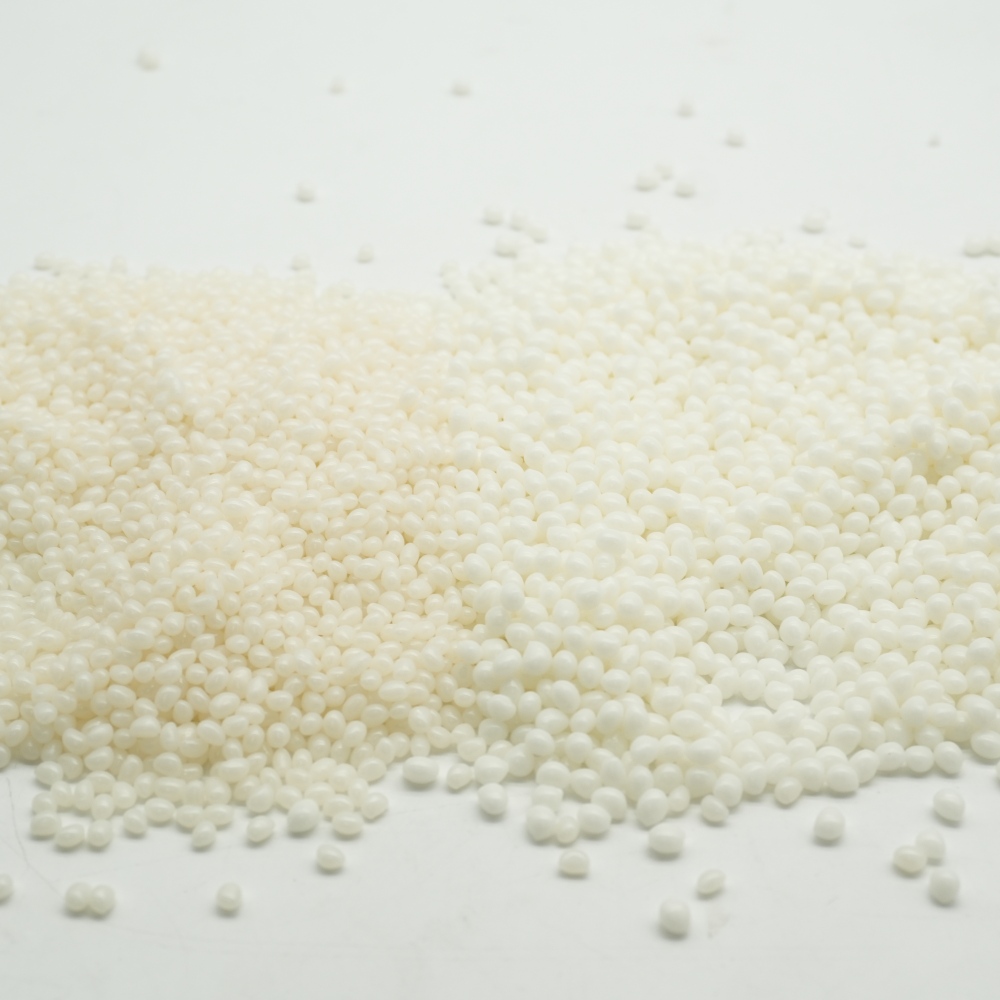

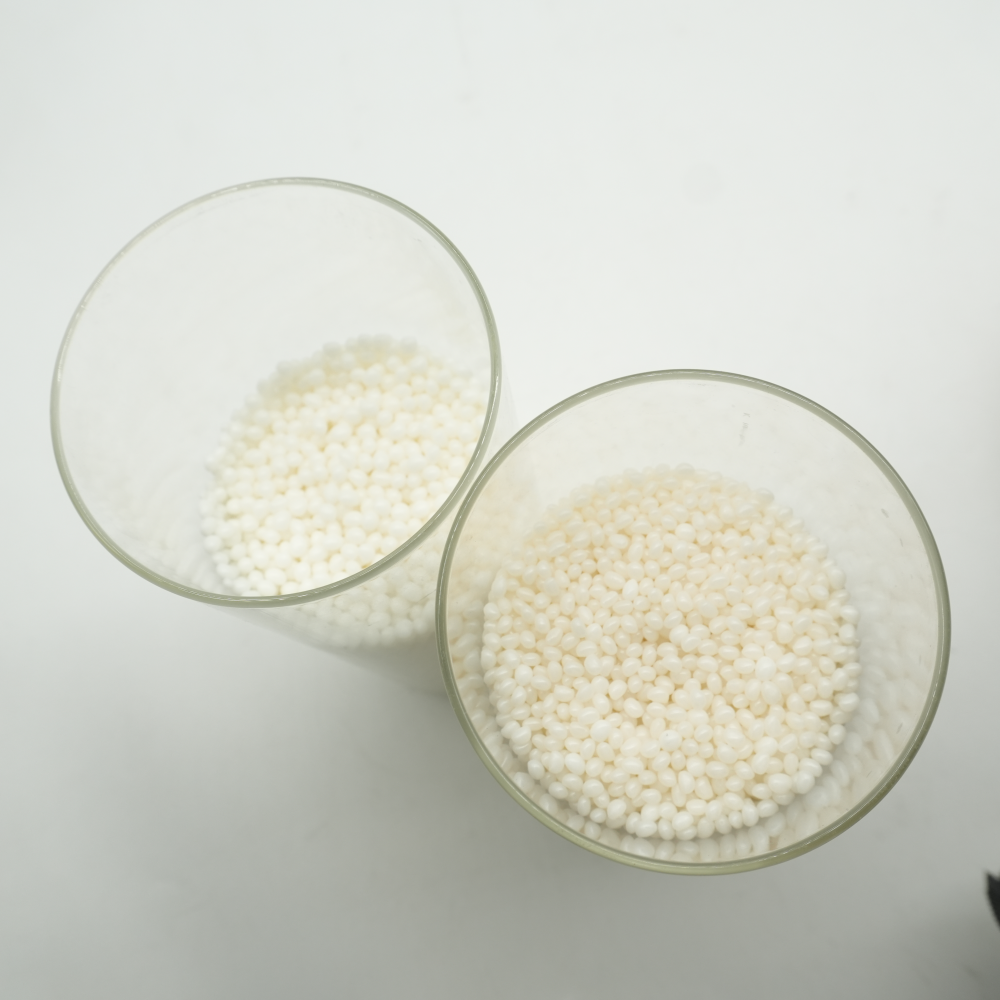

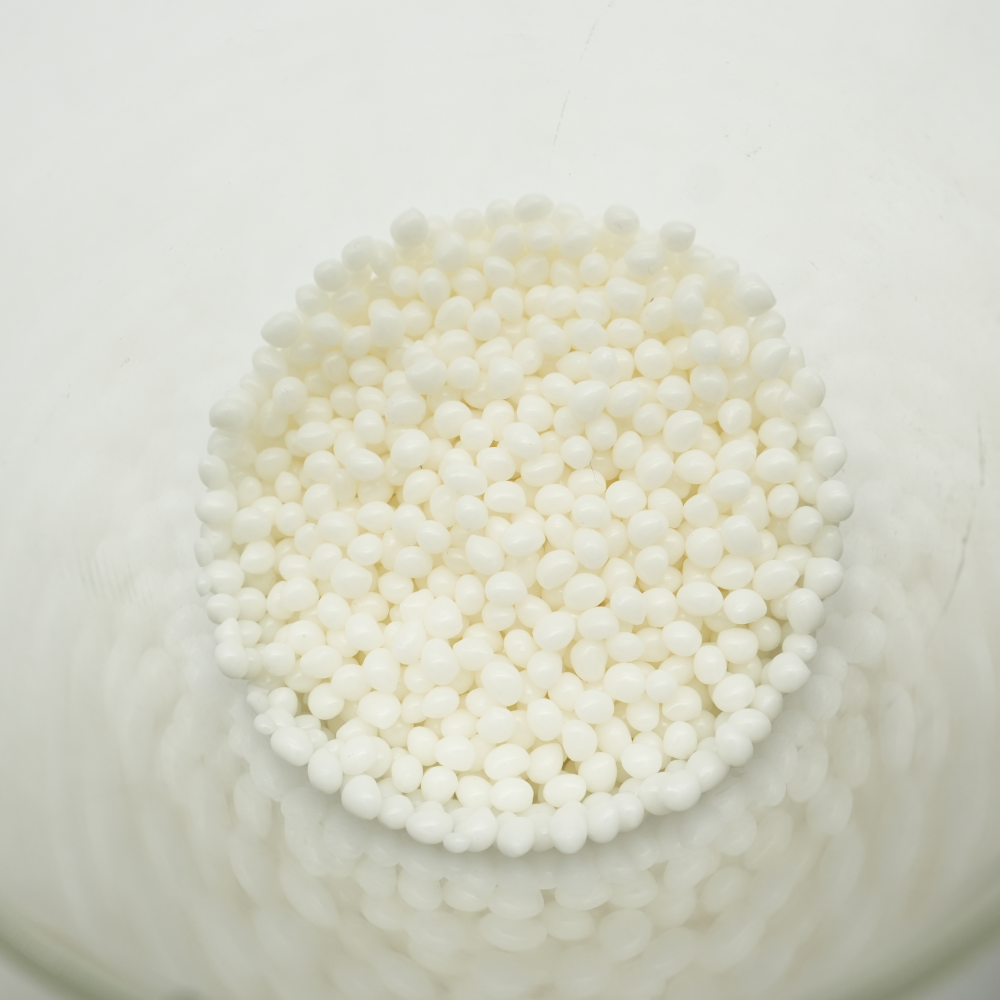

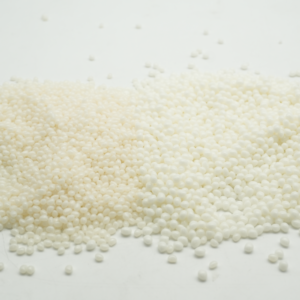

| Appearance | Milky white granules | Milky white granules | – | – |
| Applicable Substrates | PVC, ABS, PS, Veneer, Melamine paper | Solid wood, MDF, Particleboard, Plywood, Thick PVC/ABS | – | – |
| Applicable Equipment | Semi-automatic edge banders, Small automatic edge banders | Fully automatic high-speed edge banders, Medium & large automatic edge banders | – | – |
Not sure which grade fits your edge bander? Tell us your machine brand and model — our technical team will recommend the right grade based on 10+ years of field data.
Application Guide — Getting the Best Bond Quality
Step 1: Match Application Temperature to Your Edge Bander
Set the glue pot temperature according to the grade you’re using. Do not exceed the upper limit — over heating EVA causes carbonization, which clogs the glue roller and produces dark streaks on your bond line.
Step 2: Allow Full Preheating
- Cold pot to working temperature: 20–30 minutes
- Do not start production until the temperature has stabilized (fluctuation under ±3°C)
- Running production before full preheat is the cause of weak bonds on the first 20–30 panels of the shift
